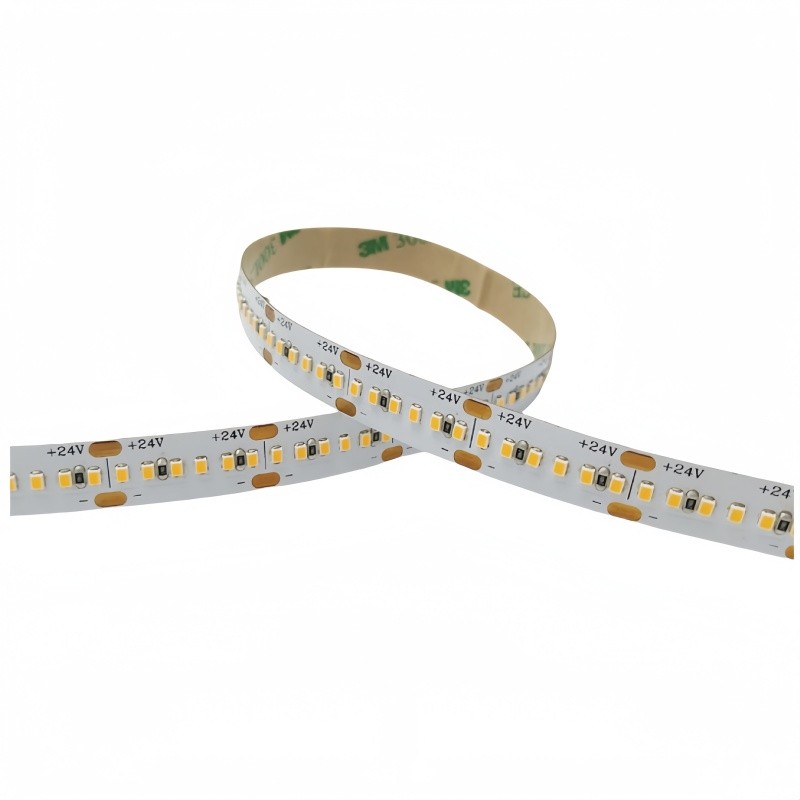

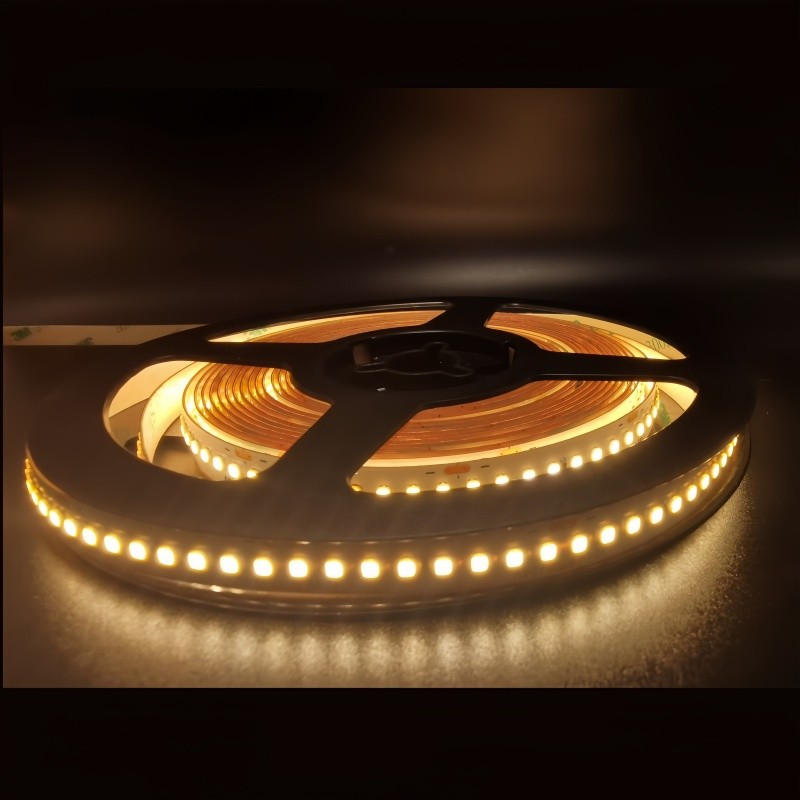

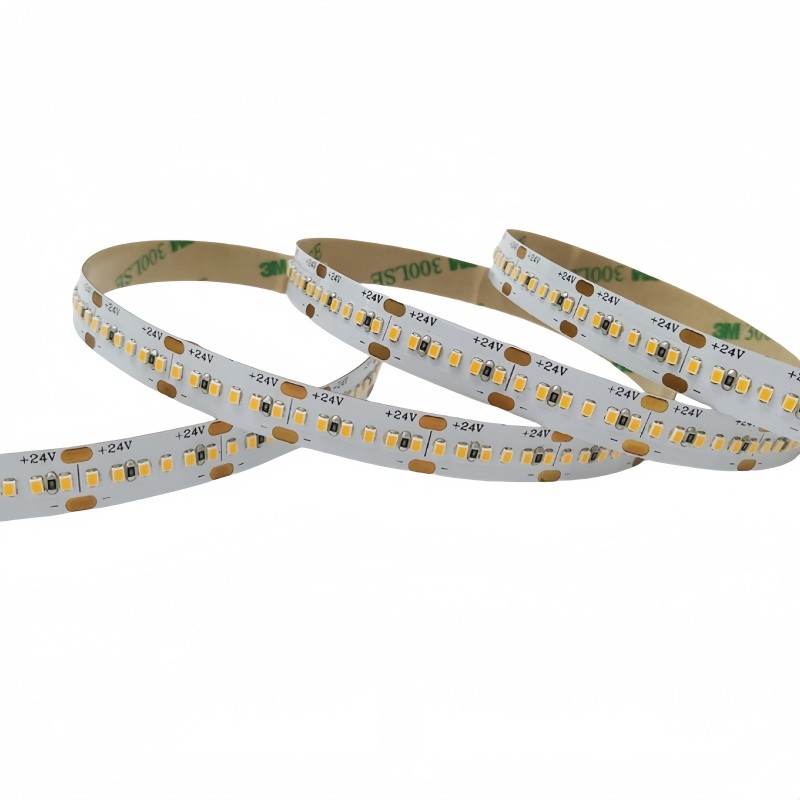

The high-efficiency LED strip light represents a breakthrough in linear lighting technology, delivering an industry-leading luminous efficiency of up to 200 lm/W. By integrating large-size LED chips, premium high-brightness 2835 LEDs, precision-engineered low-resistance components, and a 3OZ thick copper PCB, this advanced strip light achieves unmatched brightness while minimizing energy waste.


IP Rating Available





Production Dimension(mm)


						Item Name

						LED QTY

						Light Source

						Brightness

						Voltage

						Power

						Angel

						Cutting Unit

						195lm/w 2835 led strip

						560leds/M

						smd 2835

						10725lm/m @Ra80

						DC24V

						55W/M

						120°

						71.4mm

						180lm/W 2835 led strip

						560leds/M

						smd 2835

						9900lm/m @Ra80

						DC24V

						55W/M

						120°

						71.4mm

						195lm/W 2835 led strip

						480leds/M

						smd 2835

						8775lm/m @Ra80

						DC24V

						45W/M

						120°

						50mm

						180lm/W 2835 led strip

						480leds/M

						smd 2835

						8100lm/m @Ra80

						DC24V

						45W/M

						120°

						50mm

						195lm/W 2835 led strip

						160leds/M

						smd 2835

						3120lm/m @Ra80

						DC24V

						28.8W/M

						120°

						50mm

						195lm/W 2835 led strip

						128leds/M

						smd 2835

						2808lm/m @ Ra80

						DC24V

						23W/M

						120°

						62.5mm

						210lm/W 2835 led strip

						90leds/M

						smd 2835

						903lm/m

						DC24V

						14.4W/M

						120°

						100mm

						195lm/W 2835 led strip

						240leds/M

						smd 2835

						4290lm/m

						DC24V

						22W/M

						120°

						33.3mm

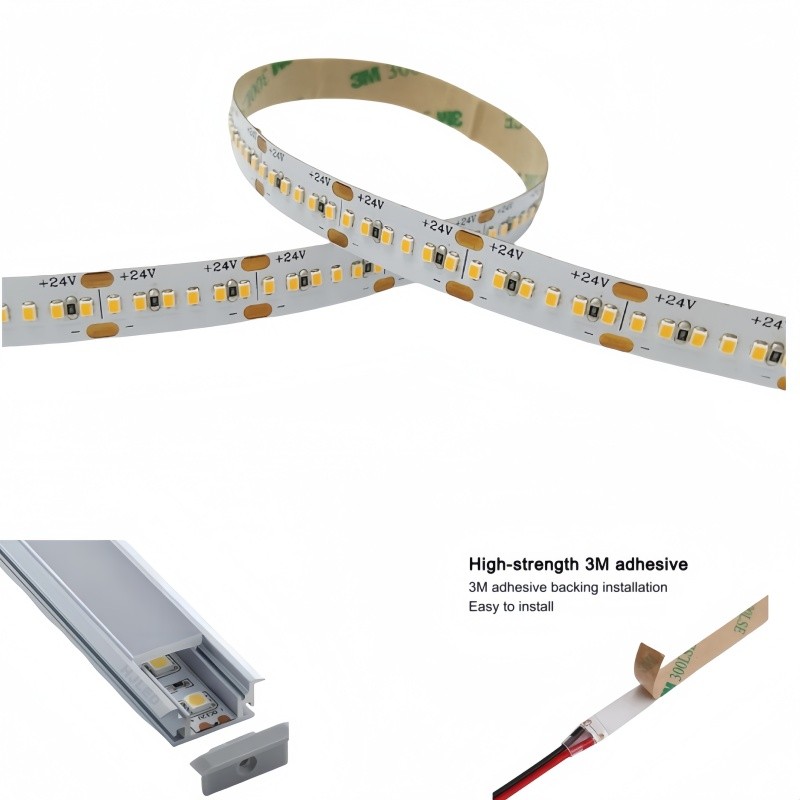

* High power led strip light need strong aluminum profile to help heat dissipation


| Connection and Lighting solutions: |


| Application: |
